Gas Spring Size Chart

Are you looking to replace an existing gas spring or want to choose one for a new project? JP is the most capable gas spring manufacturer in China to help you. We offer a wide range of compression&lockable gas springs with accurate forces and dimensions.

We can save your costs by at least 30% if you are purchasing from German or American brands now.

Determine the size and force

You need to determine the following parameters:

  1. Required Force: Based on the weight and size of the object to be moved.
  2. Stroke Length: The distance needed for the gas spring to travel.
  3. Extended Length: Ensure it fits your application when fully extended.
  4. Rod/Cylinder Diameter: Based on required strength and space availability.
  5. End Fittings: choose from our global standard end fittings and brackets catalog
  6. The mounting position and angle of the gas spring.

Compression Gas Spring Size Chart

This is the standard compression gas spring size chart of JP, and also most likely the global standard size chart. After you decide on the force and stroke for your application, then choose the appropriate Rod&Tube combination(or Series). Always remember to choose a higher level combination if demanded force reaches the upper limit of that combination.

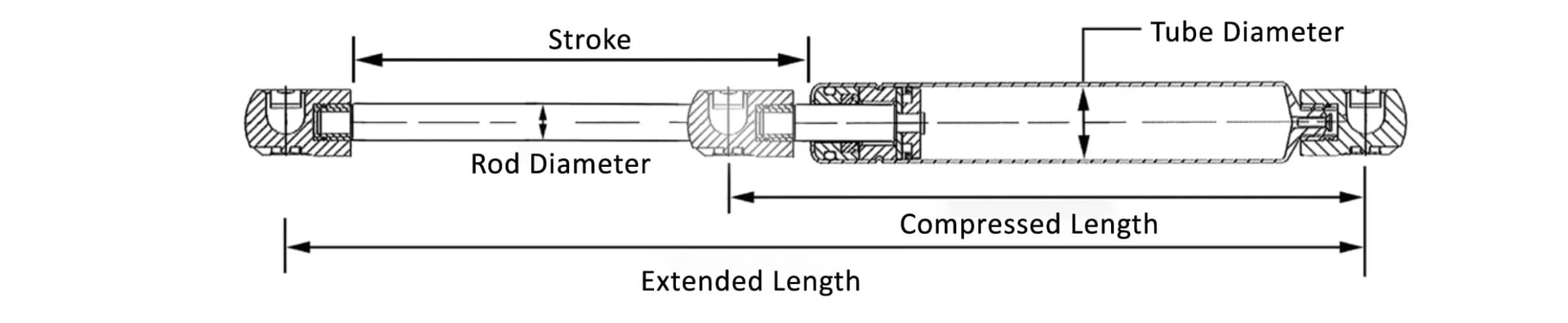

compression gas spring size chart
compression gas spring size chart
SeriesTube (mm)Rod (mm)Stroke (mm)Force(N)Extended Length(mm)K-Factor.
6/1515630-20050-2002 Stroke+351.1 ~ 1.3
8/1818850-40050-5002 Stroke+451.1 ~ 1.3
10/22221050-100050-7002 Stroke+501.1 ~ 1.3
12/252512100-1000500-20002 Stroke+551.1 ~ 1.4
14/282814100-1000500-20002 Stroke+551.1 ~ 1.4

Looking for a lockable gas spring size chart? Please go to our lockable gas spring product page.

Replace Existing Gas Spring?

Are you looking for a replacement for your current gas springs? or would you like to have some cost savings? JP gas spring is your best choice to reduce cost as least 30% if you are currently purchasing from German or American brands.

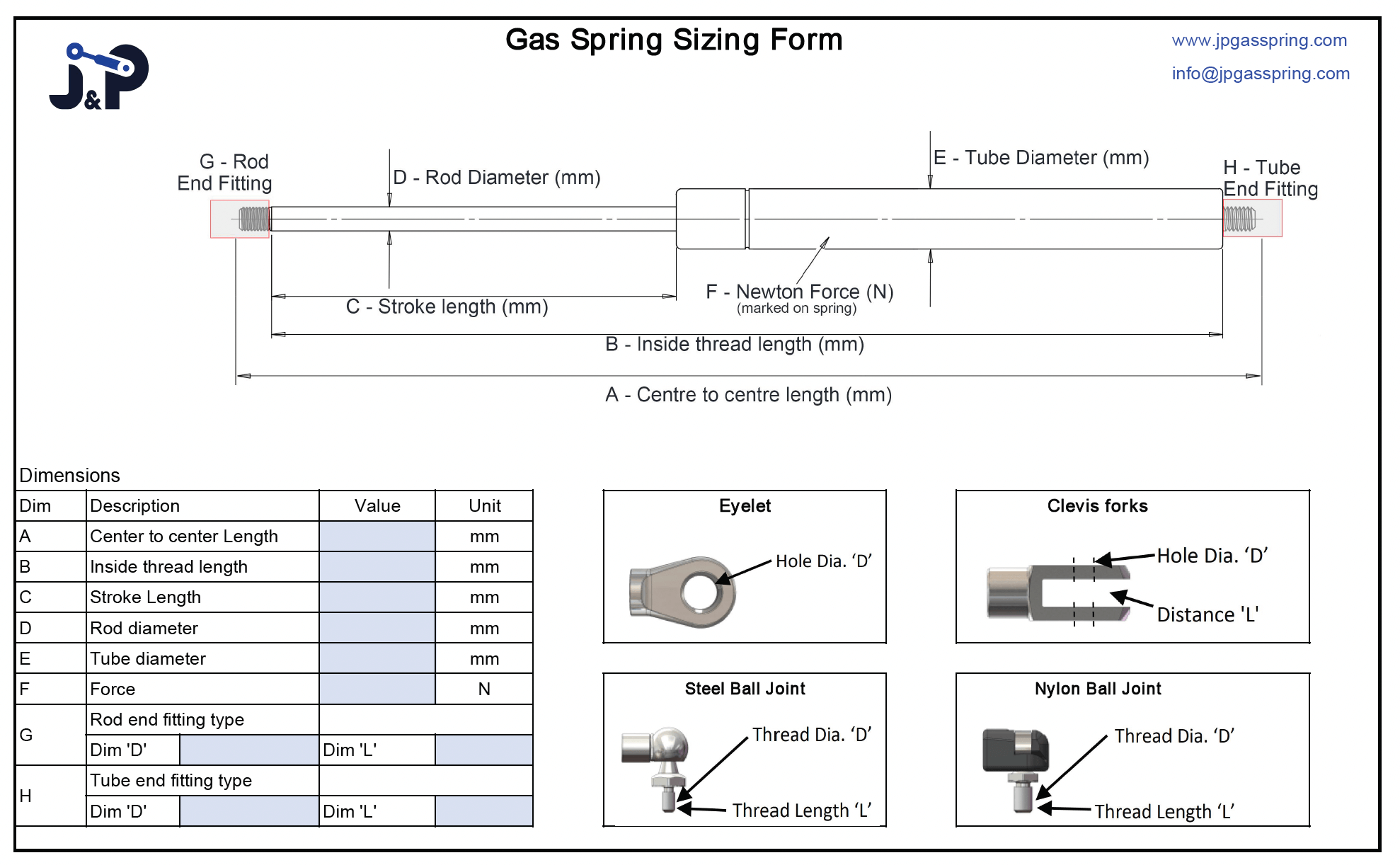

Please print the below graph, measure your existing gas spring, and write down the numbers, email us to get a free quote and samples.

gas spring sizing form
gas spring sizing form

Customization And Our Services

When our standard sizes do not meet your requirements, we can customize gas springs uniquely for your application!

Have no idea about How To Choose A Gas Spring? By reading this article, you will be able to choose the right one by clarifying the type of gas spring, function want to achieve, force is required, and the total length of the gas spring, etc.

Please feel free to consult with our expert to ensure your proper sizing and selection.
