Locking Gas Spring Series 10/28

Series 10/28

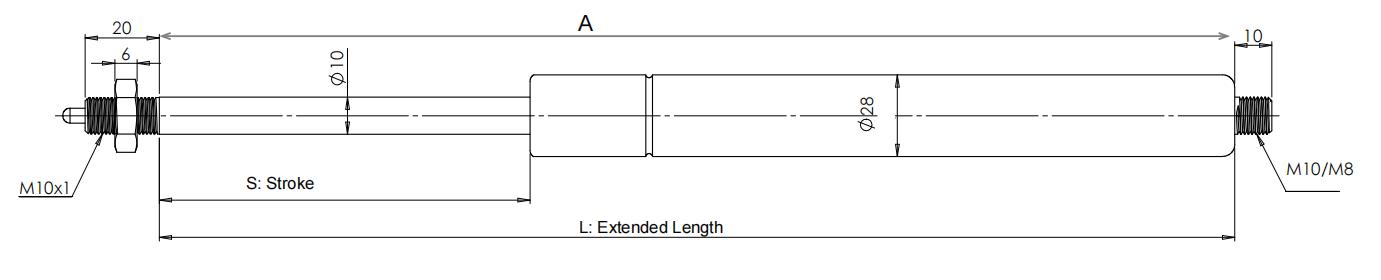

Rod Ø

10mm

Rod Material

Black Nitride Carbon Steel

Rod Thread

M10

Tube Ø

28mm

Tube Material

Carbon Steel Black Painted

Tube Thread

M8/M10

Stroke (mm)

100 ~ 700

Force (N)

60 ~ 1000

K factor/Force ratio

1.1 ~ 1.3

Notes:

Frequently used actuators are available, click to download.
Force usually means F1, which is the extended force.
Rod is hardened and black nitrided to achieve a durable and abrasive resistance surface.
The tube body is treated with a highly corrosion-resistant coating in our german standard automatic painting line.
A small amount of oil is also filled into the cylinder, which provides lubrication when the piston unit is working. And when the oil amount is high, it also work as a damping medium.
There are two kinds of locking gas spring, rigid locking gas spirng & flexible gas spring. The difference between them is that while locking, flexible gas spring has a little move. When L>2S + 90mm, the locking gas spring will be rigid gas spring. When L< 2S + 90mm, the locking gas spring will be elastic gas spring
